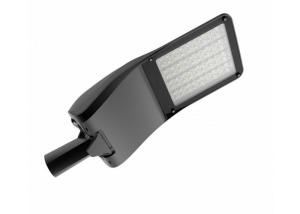

Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V
1. Specification of Led Street Light 60W:
| Par NO Parameter | LY-ST50060PW | LY-ST50060NW | LY-ST50060WW | | Input voltage | AC100V～240V 50/60HZ | | System consumption(W) | 60 | 60 | 60 | | Luminous flux(lm) | 8400 | 8000 | 7600 | | Chip Brand | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 | | CRI | ＞75 | | Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | | Lifespan(hrs) | ＞50000 | | Luminous efficiency(lm/w) | ＞140 | | Dimmable | YES＆NO | YES＆NO | YES＆NO | | IP Rating | IP65 | | Net Weigh(kg) | 4.9 | 4.9 | 4.9 | | Size(mm) | 619*240*139 | 619*240*139 | 619*240*139 | |
2. Dimension of Led Street Light 60W:
3. Application of Led Street Light 60W:
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.
4. Features of Led Street Light 60W:
• High quality power supply,input voltage 90-305V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Luxeon 5050 led and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• Luxeon 5050 led chips are adopted, which ensure high stability and also reduce the death rate of the leds
5. Distribution Curve of Led Street Light 60W:
5. Operation and Storage Condition:
> Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
> Input Voltage 90~305V AC, 50/60Hz
> Storage Ambient Temperature -30 to +60°C, Relative Humidity 5~95%
> Mounting Height : Suitable for 6~10m height
6. Package:
Inner box Size: 660mm×280mm×190mm
Outer box Size: 680mm×295mm×420mm (2 PCS LED Street Light)
8. Assembly-Electricity:
9. Mounting Section:
10. Warning:
> Do Not Use Other Devices for LED Street Light ,Installation Such as Stabilizer, Regulator …etc
> Do Not Open the Light Engine
> Do Not Soak the LED Street Light into Water
> Do Not Light up the System Without Grounding
> 1-10V dimming need to be customized

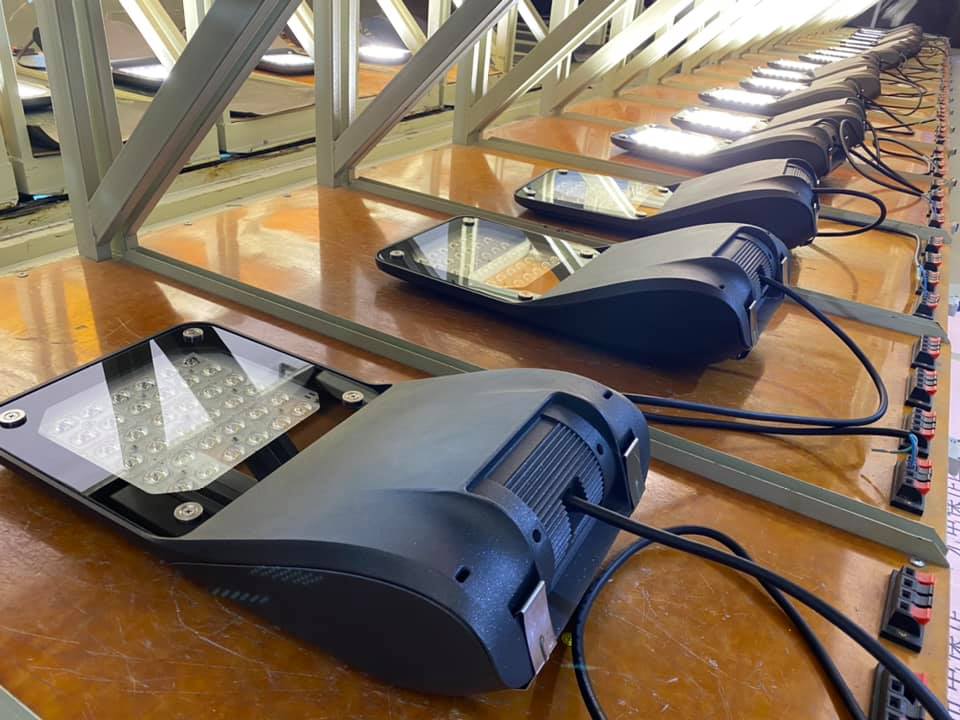

11. Detail Pictures:
FAQ:
1. May I have a sample for the light please?
--- Sure,mixed power is also support.
2. How many watts does this light provide?
--- 80w, 100w,120w, 150w, 180w
3. Which shipping way do you have?
--- DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.
4. What is your warranty?
--- We are provide 3-5 years warranty which based on different materials.
5. What is the delivery time?
--- Normally, 5-7 days for sample, 15-20 days for bulk order. If on special condition, the delivery time can be discussed.
6. Do you make OEM ?
--- Yes, OEM orders are warmly welcomed.
7. Are you the manufacturer?
--- Yes, we are professional manufacturer for led lighting since 2008. And have completed design-delelop-sales-service system.
